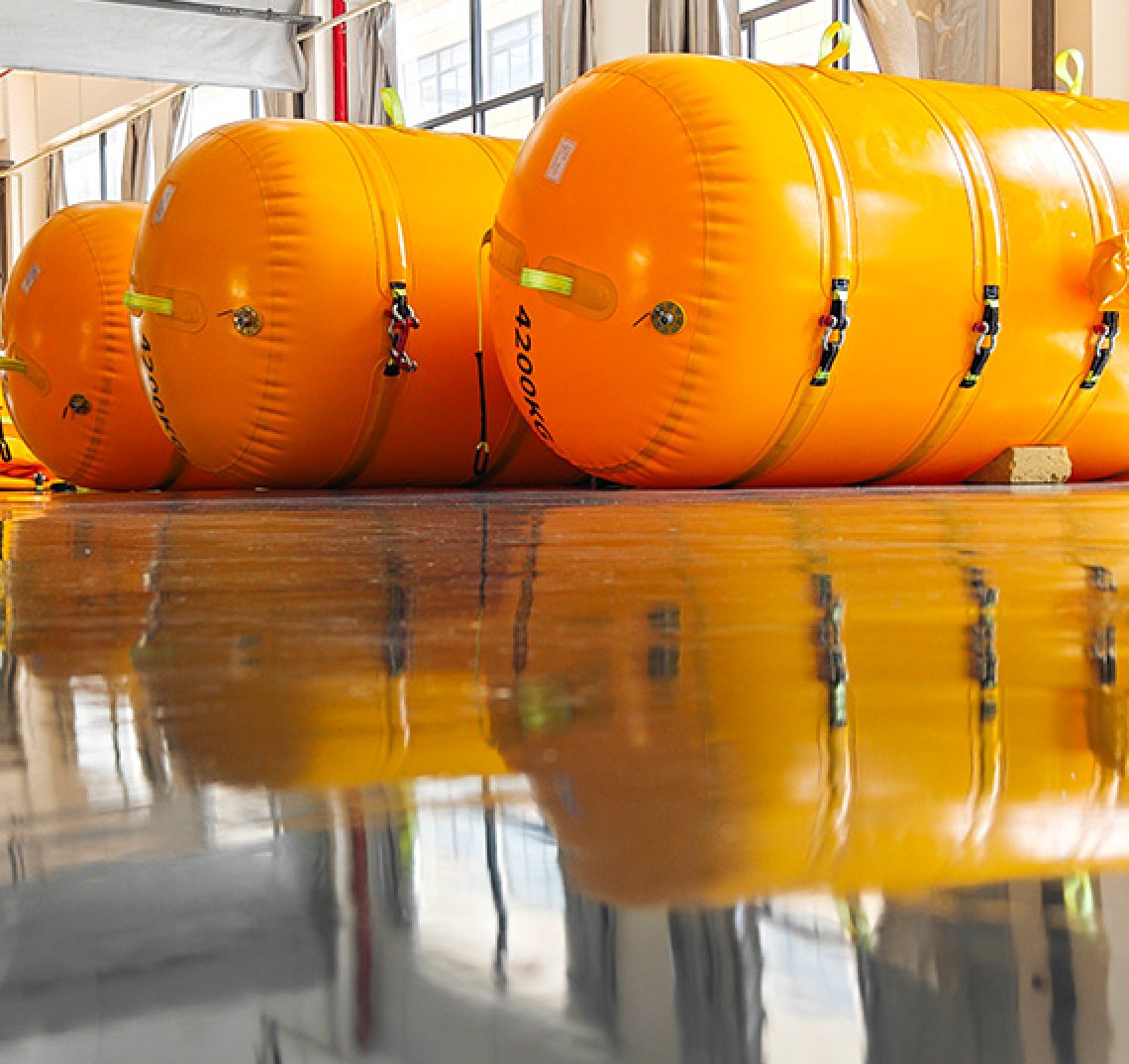

Inflatable lifting bags are versatile and durable tools designed to lift, stabilize, and support heavy loads in various industries, including marine salvage, construction, and emergency rescue. Their lightweight and compact design make them ideal for challenging environments and critical operations.
High safety factor
• Meets IMCA D-016 and ABS PDA
• Overall WLL is 5:1, sling WLL is 7:1
• Safety flip line requirements are fully implemented and verified by testing
• Specially designed sling identification and inspection schemes ensure that connection errors are avoided
High quality materials and workmanship
• The mask is made of high-strength Plato mesh material, which has better dimensional stability and is very strong. The breaking load of a 50mm wide 3/3 strip is about 1 ton.
• The mask fabric is precisely cut on an advanced automatic cutting platform with a length of 6.8 meters and a width of 2.2 meters to achieve perfect repeatability.
• RF radio frequency welding technology is used to achieve strict quality control standards
Complete service and solution support
• All products are fully tested and inspected in accordance with manufacturing standards.
• Service kits for field repairs, professional heating spray guns and instruction manuals can be provided for field repairs.
• Solution support and product customization can be provided upon request.
Understand the conditions of use
• The use of underwater air lift bags should meet the basic regulations and environmental requirements for diving safety.
• There should be no underwater explosions, pollution, obstacles, high-pressure water jets, electric shocks, and other factors that endanger the safety of divers.
• Sufficient surface and underwater lighting should be provided, and the illumination should not be less than 200 lx
Name | Standard |
Lifting bags | IMCAD016，ABS PDA |
Shackles | GB / T 25854 |
Lifting rings | GB / T 14736 |
Straight rigging | GB / T 8521.1 |
Product specifications:
• Lifting capacity is divided into various specifications from 50 kg to 50 tons.
<td width="74" valign="top" style="padding: 0px 7px; border-left-width: 1px; bord
Model no | Inflated (kgs & mtrs) | Net weight（kg） | Packed (kgs & mtrs) | ||||
Buoyancy（kg） | Diameter（m） | Length（m） | Length L | Width W | Height D | ||
CLB-005 | 50 | 0.3 | 0.6 | 5 | 0.3 | 0.2 | 0.2 |
CLB-010 | 100 | 0.4 | 0.9 | 6 | 0.4 | 0.2 | 0.2 |
CLB-025 | 250 | 0.7 | 1.1 | 8 | 0.5 | 0.2 | 0.2 |
CLB-05 | 500 | 0.9 | 1.4 | 10 | 0.6 | 0.2 | 0.2 |
CLB-1 | 1000 | 1.0 | 1.8 | 18 | 0.7 | 0.3 | 0.2 |
CLB-2 | 2000 | 1.2 | 2.3 | 28 | 0.8 | 0.3 | 0.2 |
CLB-3 | 3000 | 1.4 | 2.5 | 39 | 0.9 | 0.3 | 0.2 |
CLB-5 | 5000 | 1.5 | 3.4 | 53 | 1.0 | 0.4 | 0.2 |
CLB-6 | 6000 | 1.6 | 3.6 | 68 | 1.0 | 0.5 | 0.2 |
CLB-8 | 8000 | 1.8 | 3.8 | 82 | 1.1 | 0.6 | 0.3 |
CLB-10 | 10000 | 2.1 | 3.6 | 95 | 1.1 | 0.7 | 0.3 |
CLB-15 | 15000 | 2.2 | 4.6 | 132 | 1.2 | 0.9 | 0.4 |
CLB-20 | 20000 | 2.4 | 5.6 | 158 | 1.3 | 0.9 | 0.4 |
CLB-25 | 25000 | 2.5 | 5.7 | 196 | 1.4 | 0.9 | 0.4 |
CLB-30 | |||||||
